Products




Model GA728 II 150 / 180 / 200 / 220 / 230/ 250 / 280 / 300 / 340 / 360 / 400
Rapier Looms



Product Description

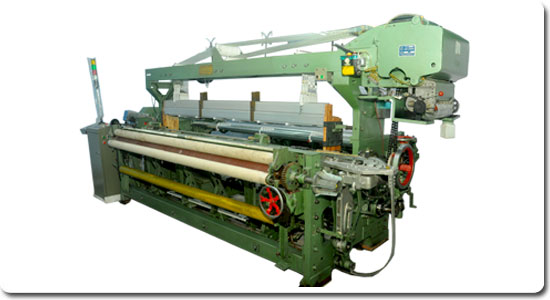

GA728 II Rapier loom is improved on the base GA747A, which adopted thickening plates for reinforcing the stability of the whole machine during producing improving the quality of products.

This machines is suitable for producing the light, thick and heavy fabric by natural fiber (cotton, wool, hemp), artificial fiber, Decorative yarn, Chenille yarn etc.

  View Details


Model GA728 II
Rpeed width (cm) Speed (rpm) 150 / 180 / 200 / 220 / 230/ 250 / 280 / 300 / 340/ 360 / 400
Speed 230 - 130
Weft selection 4 - 6 four - six color
weft density 5 - 40 five - forty pcs / cm
Dia of warp beam (mm) 600
Full take - up roller diameter 300
Motor power (km) 1.5 - 1.8

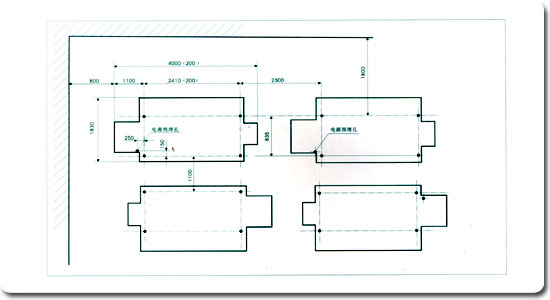

Overall dimension 400 x 1830 x 1750 (200) L4000XW 1830 XH1750 (model2000)
Loom size 150
