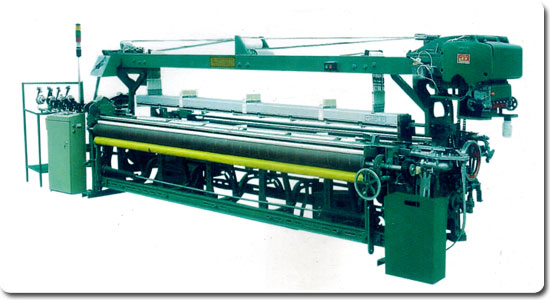

Model GA747A 150 / 180 / 200 / 230/ 250 / 280 / 300 / 330 / 360 Rapier Looms


Product Description

GA747A Series rapier loom is mainly usedto weave natural fiber (cotton, wool, hemp), artificialfiber, fancy, yarn and chenille yarn into light, medium and heavy fabrics.



Model Reed width Rota tion Speed Weft density Range Shedding Derice Warp beam Diameter Motor Power Color Selection Machine Weight Maximum roller Diameter verall Size
GA747A 180-200
200-230
250-280
300-360
210
180
160
140
5-47 cm
5-47
root / cm
GT221
GT222 - II
user define
1.5kw 4-6 colour 2200kg 4000 X 180 X1800 (200)
LXWXH
4000 X 1830 X1800 (200)


  Feature
This product can meet with the requirment of the textile market for it has the best performance price ratio. This product is controlled by transfer programmed controller (PLC), and equipped with automatic weft hunting device (can need to be added according to the customer), automatic stop device when the weft is broken as well as semi - automatic oil supply device. Stable performance, low noise, easy to operation and maintanance, better outer appearance and wide application range are its features

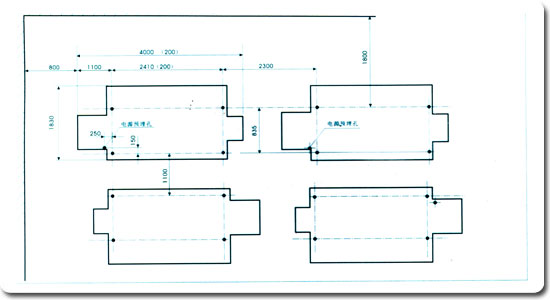

Layout Drawing of machine
