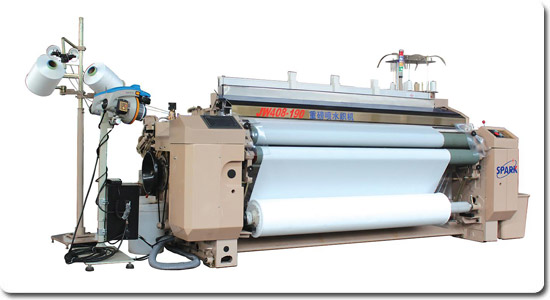

JW408 water jet loom with an optimum design on its structure and operation accessories, with a high degree of mechanical and electrical integration, high speed, energy saving, etc. This weft insertion mechanism is improved, so the vibration and noise is greatly reduced, the rigidity and stability are greatly improved; Use separate nozzle holder, can set separately for each nozzle the of position and direction, use super start motor, large capacity of electromagnetic brake, with function of positioning parking, adopted new energy-saving nozzle sharply reduced water consumption, The machine is a new type of water jet loom suitable for light to medium density fabrics.
| The technical information |
JW Series water jet loom |
| Applicaiton |
Denier water resistant chemical fabric |
| Nominalreed |
0 - 50 |
| Textile |
50 - 420 |
| Weft density (piece / 10cm) |
50 - 600 |
| Loom beam disc diameter (mm) |
800 |
| Max roll diameter (mm) |
420 / 520 |
| Shedding |
Shafts shedding, Cam shedding, Dobby shedding |
| Control system |
W2000 model and sd350 |
| Beating up |
4 shafts linkage at both sides for beat up |
| Silvedge |
Raw edge |
| Weft insertion |
Hi - presssure water jet |
| Feeler |
Optical feeler |
| Binder |
Leno yarn by planetary |
| Weft cut |
Mechanical cutter |
| Let-off-device |
Electronic lef-off |
| Take-up |
Electronic take-up |
| Dehydration |
Negative pressure dehydrate, stand extracting |
| The number of heddle frame (page) |
16 |
| Lubricant system |
Oil lake, thicker oil |
| Water pressure (Mpa) |
From the tap water |
| Brake device |
Electromagnetic brake |
|
|
|
|
